An easier way to view crashes in the Windows Event Log

By , March 6, 2020 11:45 am

In a previous article I wrote about how to identify crashes in the Windows Event Log.

You need to use the Windows Event Viewer, inspect each entry looking for some keywords then decode the XML data to get the information you want. All a bit slow, tedious and error prone.

So we wrote a tool to do that for you: Event Log Crash Browser.

Event Log Crash Browser scans your event log looking for crash events, then picks out only the information that is useful:

  • The executable.
  • The DLL that crashed (if it did crash in a DLL, rather than non-DLL memory).
  • The exception code.
  • The offset into the DLL of the crash location (or the location in memory for non-DLL crashes).
  • We also read the version information from the DLL so that we can identify the company responsible for the DLL that crashed.

You can sort on any column, and filter by exception type, executable and DLL.

It’s a really easy way to see what failures are happening on your machine. A lot more convenient than Windows Event Viewer. Looking at this machine I can see that the Visual Studio compiler, linker and IDE crash from time to time. I can also see that the WMI provider service dies quite often from a heap corruption – this is a core bit of Microsoft technology that has problems. Most of the other failures are related to the software under development and test on this machine.

Identifying crashes with the Windows Event Log

By , February 12, 2020 4:43 pm

It’s an unfortunate and inevitable fact that while developing software sometimes your software will crash. This also happens, sometimes, hopefully very infrequently, in production code. Each time this happens Windows stores some information about each crash in the Windows Event Log, along with a multitude of other event information it logs.

In this article I’m going to explain two event log entry types which encode crashes, and how to read them. Then I’ll also introduce some tools that take the drudgery out of converting this information into symbol, filename and line number.

The Windows Event Log

The Windows event log can be viewed using Microsoft’s Event Viewer. Just type “Event Viewer” in the start menu search box and press return. That should start it. Crash information is stored in the sub category “Application” under “Windows Logs”. The two event sources that describe crashes are Windows Error Reporting and Application Error.


The image above shows a Windows Error Reporting event has been selected. The human readable form is shown below in the General tab. Although I say human readable, it really is unintelligible gibberish. None of the fields are identified and you have nothing to work with. The details tab isn’t any better – the raw data is present in text or XML form. Here’s the XML for the crash shown above.

<Event xmlns="http://schemas.microsoft.com/win/2004/08/events/event">
  <System>
    <Provider Name="Windows Error Reporting" />
    <EventID Qualifiers="0">1001</EventID>
    <Level>4</Level>
    <Task>0</Task>
    <Keywords>0x80000000000000</Keywords>
    <TimeCreated SystemTime="2020-02-12T10:09:34.000000000Z" />
    <EventRecordID>260507</EventRecordID>
    <Channel>Application</Channel>
    <Computer>hydra</Computer>
    <Security />
  </System>
  <EventData>
    <Data>2023787729086567941</Data>
    <Data>1</Data>
    <Data>APPCRASH</Data>
    <Data>Not available</Data>
    <Data>0</Data>
    <Data>testDeliberateCrash.exe</Data>
    <Data>1.0.0.1</Data>
    <Data>5e419525</Data>
    <Data>testDeliberateCrash.exe</Data>
    <Data>1.0.0.1</Data>
    <Data>5e419525</Data>
    <Data>c0000005</Data>
    <Data>000017b2</Data>
    <Data />
    <Data />
    <Data>C:\Users\stephen\AppData\Local\Temp\WERC24C.tmp.WERInternalMetadata.xml</Data>
  <Data>C:\Users\stephen\AppData\Local\Microsoft\Windows\WER\ReportArchive\AppCrash_testDeliberateCr_c31b903842d94a84d4621dceaac377462674f7a_eb589596_139ec4bd</Data>
    <Data />
    <Data>0</Data>
    <Data>c3d360b2-4d7f-11ea-83d3-001e4fdb3956</Data>
    <Data>0</Data>
    <Data>54756af49aec84f97c15f03794ffd605</Data>
  </EventData>
</Event>

There’s quite a bit of data in here, the purpose of each field implied, not stated. Towards the end is some information related to minidumps, but if you go searching for it, the minidump will no longer be present.

The format for Application Error crashes is different.

Windows Error Reporting

The event log data for a Windows Error Reporting event contains many fields that we don’t need if we’re just investigating a crash address. Each event starts with an <Event> tag and ends with an </Event> tag.

We need to correctly identify the event. Inside the event is a <System> tag which contains a tag with an attribute “Provider Name” set to “Windows Error Reporting”.

Once the event is identified we need to find the <EventData> tag inside the event. The <EventData> contains 14 <Data> tags. These tags are present:


  • 1. Timestamp.

  • 2. Number of data items.

  • 3. Information Type.

  • 4. Information Status.

  • 5. Unknown.

  • 6. Crashing executable.

  • 7. Executable version.

  • 8. Executable timestamp.

  • 9. Crashing DLL. This will be the same as 6 if the crash is in the .exe.

  • 10. DLL version. This will be the same as 7 if the crash is in the .exe.

  • 11. DLL timestamp. This will be the same as 8 if the crash is in the .exe.

  • 12. Exception code.

  • 13. Fault offset.

  • 14. Class. This may or may not be present

Information Type is normally “APPCRASH”. In this case we’re interested in tags 9, 12 and 13.

If Information Type is “BEX”, the data is different:


  • 1. Timestamp.

  • 2. Number of data items.

  • 3. Information Type.

  • 4. Information Status.

  • 5. Unknown.

  • 6. Crashing executable.

  • 7. Executable version.

  • 8. Executable timestamp.

  • 9. Crashing DLL. This will be the same as 6 if the crash is in the .exe.

  • 10. DLL version. This will be the same as 7 if the crash is in the .exe.

  • 11. DLL timestamp. This will be the same as 8 if the crash is in the .exe.

  • 12. Fault offset.

  • 13. Exception code.

  • 14. Class. This may or may not be present

Note that the order of the fault offset and exception code has been reversed compared to APPCRASH.

Of these tags we’re interested in tags 9, 12 and 13.

If we want to version the crashing DLL we also need tags 10 and 11.

Application Error

The event log data for an Application Error event contains many fields that we don’t need if we’re just investigating a crash address. Each event starts with an <Event> tag and ends with an </Event> tag.

We need to correctly identify the event. Inside the event is a <System> tag which contains a tag with an attribute “Provider Name” set to “Application Error”.

Once the event is identified we need to find the <EventData> tag inside the event. The <EventData> contains at least 12 <Data> tags, some of which may not be present, or which may be empty. These tags are present:


  • 1. Crashing executable.

  • 2. Executable version.

  • 3. Executable timestamp.

  • 4. Crashing DLL. This will be the same as 1 if the crash is in the .exe.

  • 5. DLL version. This will be the same as 2 if the crash is in the .exe.

  • 6. DLL timestamp. This will be the same as 3 if the crash is in the .exe.

  • 7. Exception code.

  • 8. Fault offset.

  • 9. Process id.

  • 10. Application start timestamp.

  • 11. Application path.

  • 12. Module path.

Of these tags we’re interested in tags 7, 8 and 12.

If we want to version the crashing DLL we also need tags 5 and 6. If 12 isn’t available, use 4.

Removing the drudgery

The previous two sections have described which fields to extract data from. If you’re doing this manually this is tedious and error prone. You have to select the correct values from the correct fields and then use another application to turn them into a symbol, filename and line number. Our tools DbgHelpBrowser and MapFileBrowser are designed to take a crash offset inside a DLL and turn it into a human readable symbol, filename and line number. But that still requires you to do the hard work of fishing the correct data out of the XML dump.

Now there is a better way, we’ve added an extra option to these tools that allows you to paste the entire XML data from a crash event and the tool then extracts the data it needs to show you the symbol, filename and line number.

DbgHelpBrowser

Load the crashing exe (or DLL) into DbgHelpBrowser. This will cause the symbols to be loaded for the DLL (assuming symbols have been created and can be found). We’re not covering versioning the DLL as most likely you will have your own methods for this.

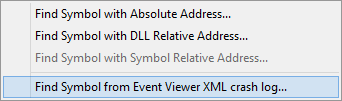

Choose the option Find Symbol from Event Viewer XML crash log… on the Query menu. The Event Viewer Crash Data dialog is displayed.

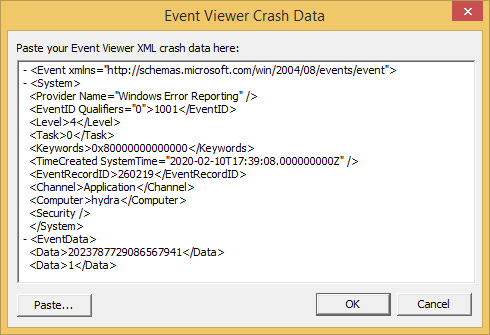

Paste the XML data into the dialog and click OK.

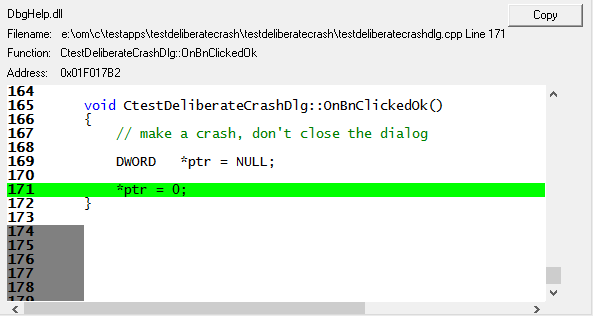

The main display will select the appropriate symbol in the main grid and display the relevant symbol, filename, line number and source code in the source code viewer below.


MapFileBrowser

Load the MAP file for the crashing exe (or DLL) into MapFileBrowser. We’re not covering versioning the DLL as most likely you will have your own methods for this.

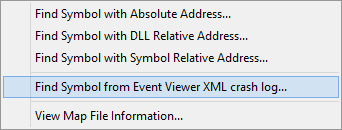

Choose the option Find Symbol from Event Viewer XML crash log… on the Query menu. The Event Viewer Crash Data dialog is displayed.

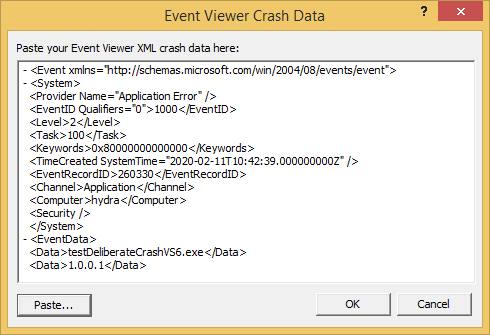

Paste the XML data into the dialog and click OK.

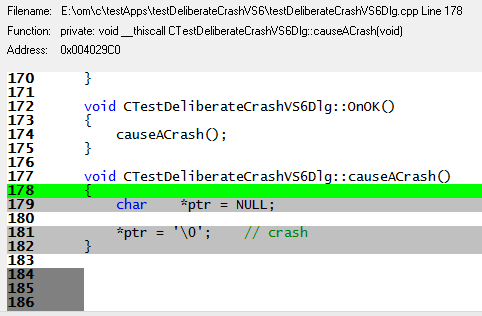

The main display will select the appropriate symbol in the main grid and display the relevant symbol, filename, line number and source code in the source code viewer below.


Conclusion

Windows Event Logs can be hard to read and error prone to use. However when paired with suitable tools you can quickly and easily turn event log crashes into useful symbol, filename and line number information to inform your debugging efforts.
